ADMS-Urban

World leading software for urban air quality management

Model interface and Mapper

The model interface is designed so that the user can enter the data required for the modelling in as straightforward a way as possible.

The interface consists of several main screens. To set up a model run, the user simply works through the screens entering the relevant data or referencing external data files.

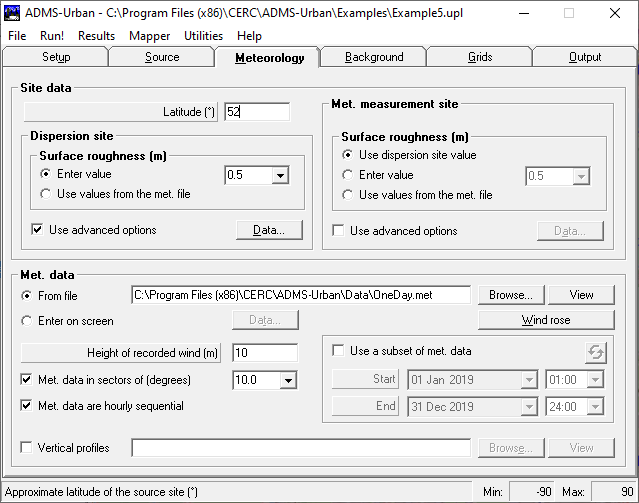

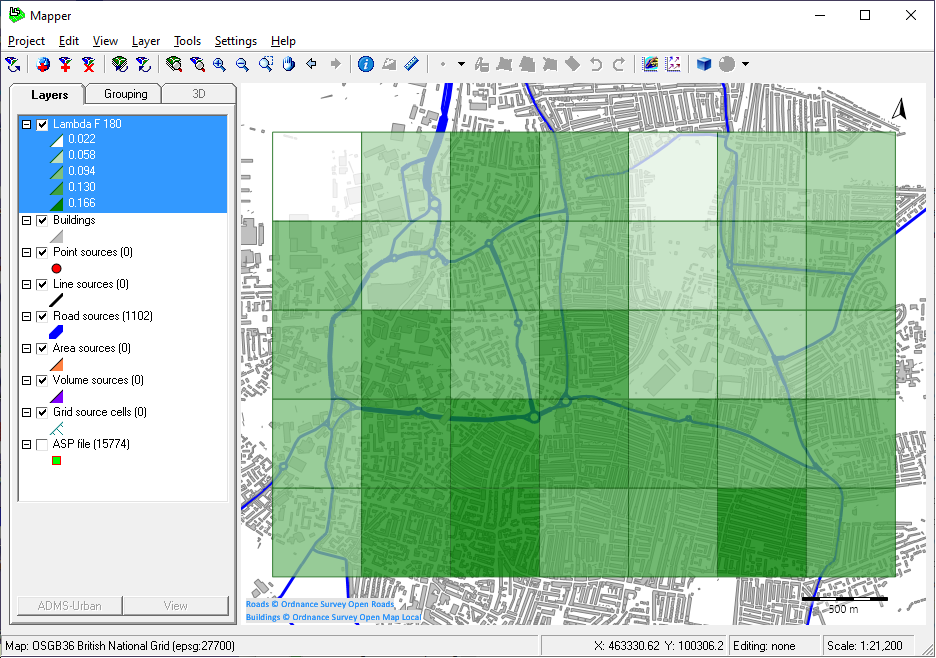

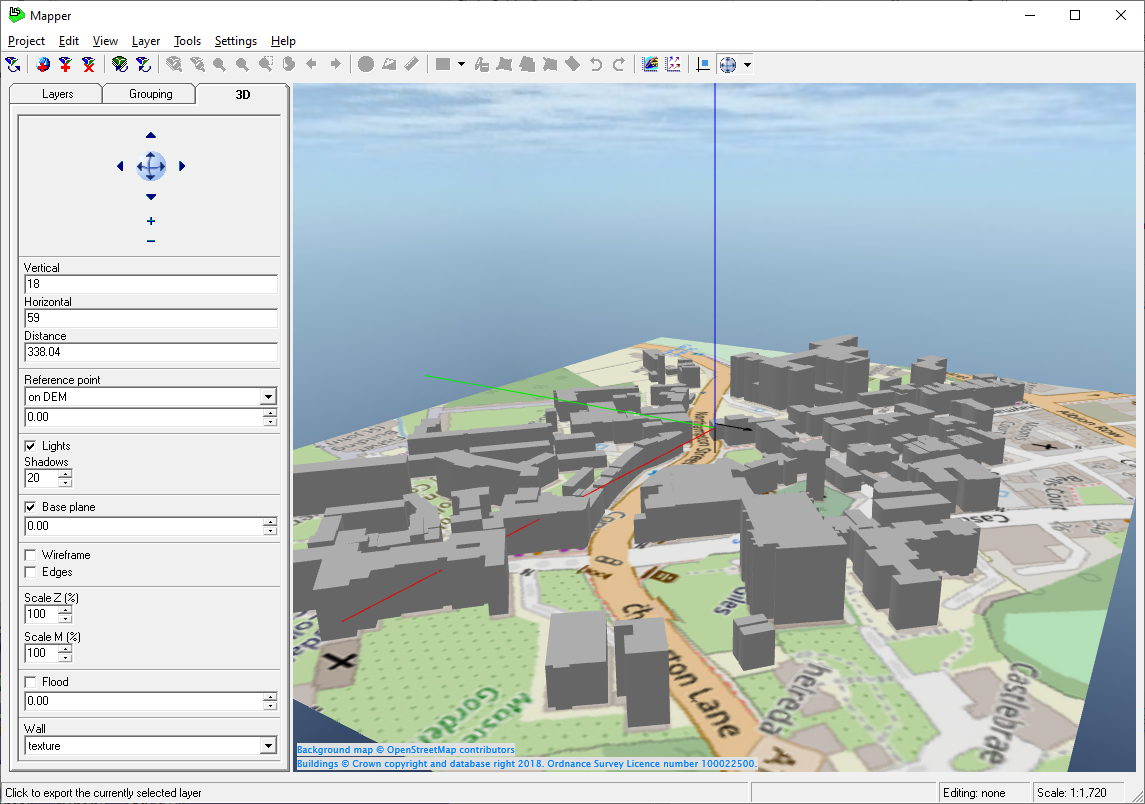

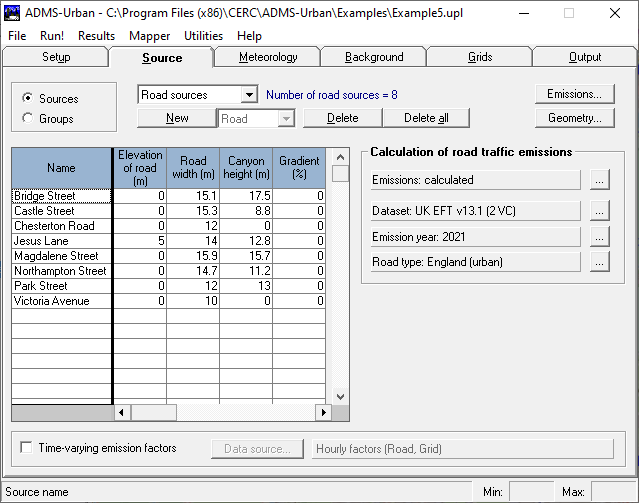

ADMS-Urban interface image: setup screen ADMS-Urban interface image: sources screen ADMS-Urban interface image: emissions screen ADMS-Urban interface image: background screen ADMS-Urban interface image: meteorology screen ADMS-Urban interface image: output screen ADMS-Urban interface image: grids screen ADMS Mapper image: source apportionment ADMS Mapper image: contour plot NOx ADMS Mapper image: Old Kent Road 3D ADMS Mapper image: plume with hill ADMS Mapper image: source apportionment form

(Click to enlarge)
